26 Portable Horse Stall Panels Inc Gate, Round Yard, Cattle Fences,
Corral 18m Diameter
Our custom-made round yards are of high quality, for the horse
person who wants a
round yard designed with the safety of horse and rider in mind.
Very easy to assemble and very safe and sturdy.
Pickup is preferred, however, we can arrange freight- please
contact us for a quote.
Email: aobiaofence@gmail.com
| Style | Length mm | Height mm | No. of rails
| Size of Rail
|
Livestock panels round rail
| 2100 | 1800 | 6 | 42mm O.D. 1.6mm |
Livestock panels square rail
| 2100 | 1800 | 6 | 40mm × 40mm RHS × 1.6mm |
Livestock panels oval rail
| 2100 | 1800 | 6 | 40mm × 40mm RHS × 2mm |
| 2100 | 1800 | 6 | 30mm × 60mm × 1.6mm 30mm × 60mm × 2mm |
| 2100 | 1800 | 5 | 40mm × 80mm × 1.6mm 40mm × 80mm × 2mm |
| 2100 | 1800 | 5 | 42mm × 115mm × 1.6mm 42mm × 115mm × 2mm
|
| Height x Length: | 2200mm x 2100mm 2700x2100mm |
| Frame: | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with
fully welded caps |
| Cattle Gate Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails,30x60x1.6mm |
| Finishing: | hot dipped galvanized, zinc coating: more than 15 microns. Fully welded oval pipes, post &brackets, heavy duty hinges |
The AOBIAO Manufacturing Round Yard is designed to angle out at the
top, therefore, allowing a rider to ride in the yard without fear
of knocking legs and possibly hurting themselves. Each panel has poly belting attached
individually, allowing for easy installation and future relocation.
The round yard is constructed from galvanized steel.
- Completely round and rubber up to any height
- 2 meter straight panels in any height, placed in a circle shape (22
panels = approx. 14m diameter)
- Oval shape with sloping walls
- Freestanding and portable
- We reinforce the bottom of the panels with heavy duty mesh to cope
with the sand pressure.
- We make with and without roofs.
- We can make any size and any style.
- We can also make cutting and campdraft cut out pens.
- We can also line your arenas with rubber belting.
Horse Round Yards can be constructed from any of our Cattle Panels.
If you are looking for a 16m (52ft) diameter round yard you will
need 21 panels 2.1m long & a gate. The price quoted is based on our

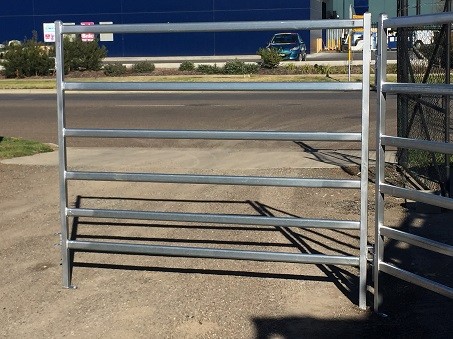

40x40 panels. The picture shown is our 40x40 panels and our 50x50
horse gate in a "U" shaped frame.
These cattle panels are relatively lightweight and easy to assemble
with double lugs and two single lugs welded to the panel for
inserting cattle pins to hold them together.
It takes mere seconds to drop the cattle pins into the lugs on
every panel and they are ready to position and use. Cattle fence
panels give you the flexibility to build semi-permanent yards of
any size suitable for working cattle and loading for transport.
Q1.manufacturer or trading company
A: We are a manufacturer having more than 6 years of production
experiences.
Q2.Minimum of order
A: One set can be met, but the price will be higher.
Q3.Can you arrange the shipment in the busy season
A: We ship many years, we had a good relationship with ship lines. Our products can be shipped in priority.
